Pressure Control Valve Manufacturer in Taiwan
High Lift Safety Valve -Stainless Steel Type

HSY

  • SS304; SS316

  • Thread 1/2'' to 1-1/2''

  • 0.3-50 kgf/cm2

  • SS304; SS316

Model HSY, Safety Valve or Safety Relief Valve is a valve that acts as a fail-safe. It's a valve that opens automatically to relieve excessive pressure.

An essential component for any industrial system / pipelines.

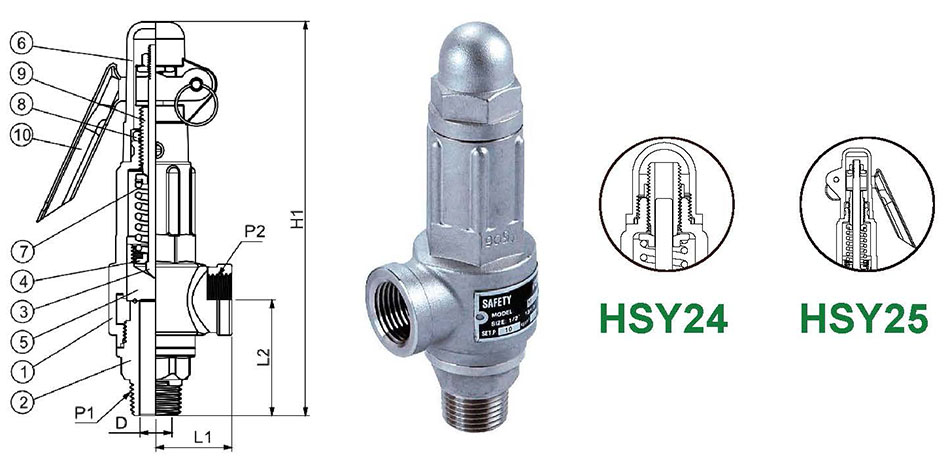

Different types of Design and Disc Material Selections

▲ Different types of Design and Disc Material Selections

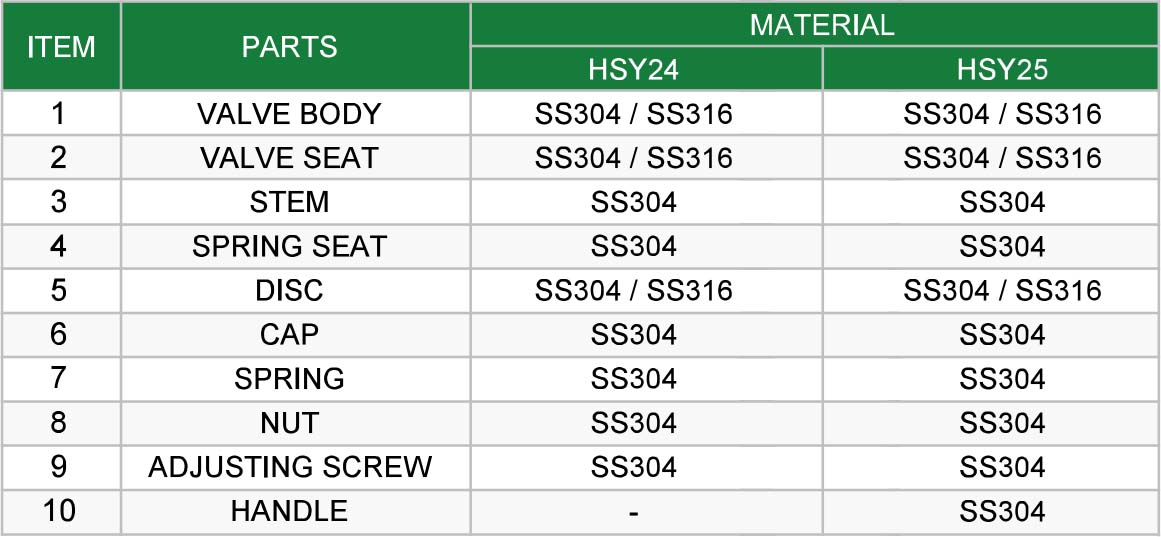

Hants High Lift Safety Valve (Stainless Steel Type) Size Specification

DataSheetAdd to Inquiry
