What's an Electric Butterfly Valve?

Electric Butterfly Valve, or also called as Butterfly Valve actuator, Electric Butterfly Valve, Electric actuated butterfly valve, Motorized Butterfly Valve, Electrical operated butterfly valve is a compact design to control the flow of gas or liquid by means of a disk, which turns on a diametrical axis inside a pipe permitting the flow in only one direction and offers a rotary stem movement of 90 degrees.

HANTS Electric Butterfly Valves, model BAW, has complied with IP66 protection, water-proof and dust-proof design. This model with Anti-Frost design, especially for HVAC and air condition system, chiller equipment, etc. suitable for working temperature -15°C ~ 50°C. The wafer type butterfly valve in aluminum alloy main body with stainless steel diametrical axis, which can prevent frost in the low temperature.

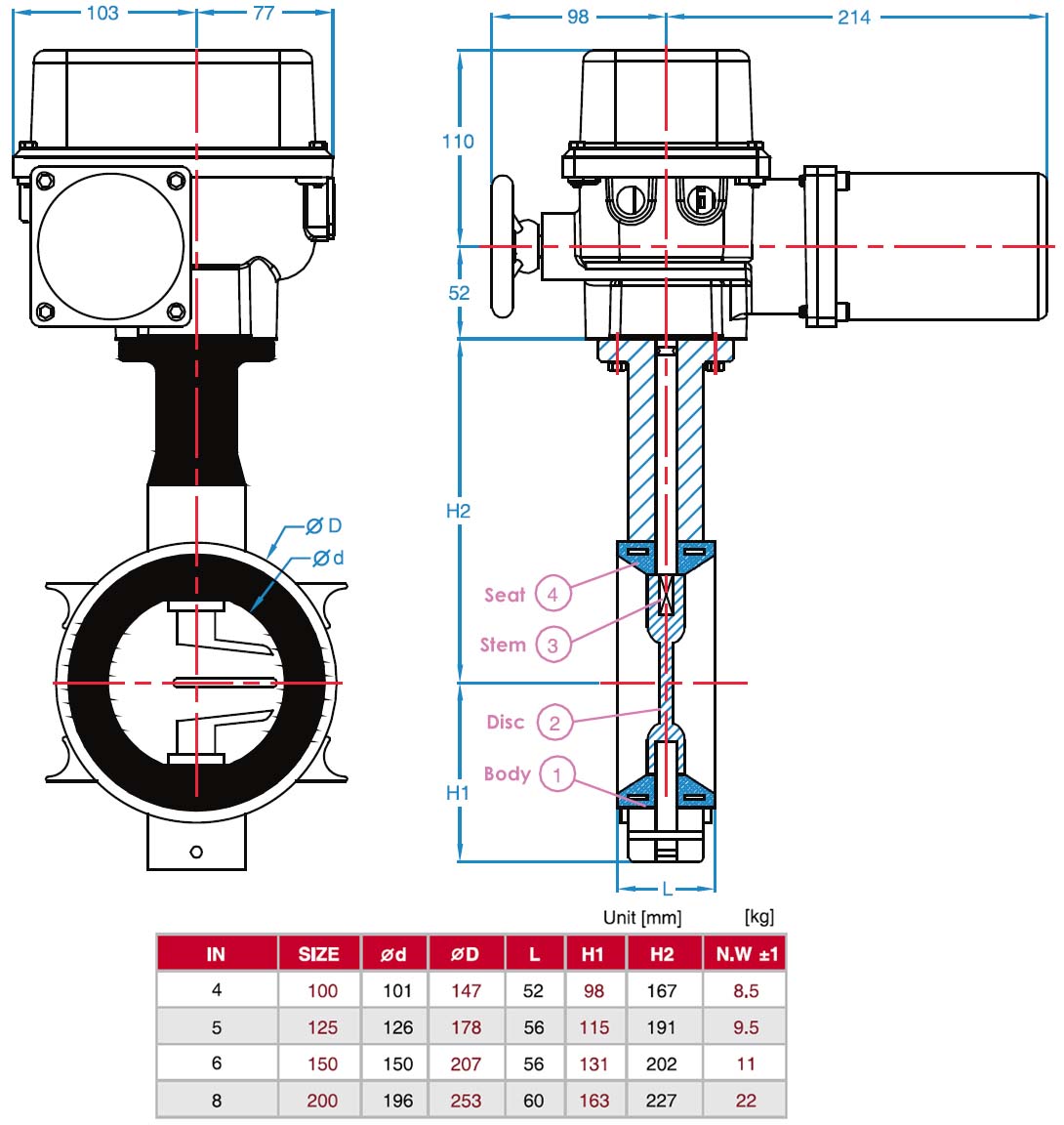

▲ Electric Butterfly Valve Structure Diagram

Features of Electric Butterfly Valve for HVAC, air condition (anti-frost design)

◆ Anti-frost design, especially for HVAC, air condition system, chiller, etc. low temperature environment.

◆ Wafer type butterfly valve in Aluminum alloy main body with stainless steel diametrical axis.

◆ Butterfly valve available size from 1-1/2'' to 12''.

◆ The turning speed of 90° rotation in 7 ~ 80 seconds.
