What's an Electric Butterfly Valve?

Electric Butterfly Valve, or also called as Butterfly Valve actuator, Electric Butterfly Valve, Electric actuated butterfly valve, Motorized Butterfly Valve, Electrical operated butterfly valve is a compact design to control the flow of gas or liquid by means of a disk, which turns on a diametrical axis inside a pipe permitting the flow in only one direction and offers a rotary stem movement of 90 degrees.

HANTS Electric Butterfly Valves, model BFW, has complied with IP66 protection, water-proof and dust-proof design, specially used on water treatment system, HVAC, rain water utilization. Suitable for working temperature 10°C ~ 100°C.

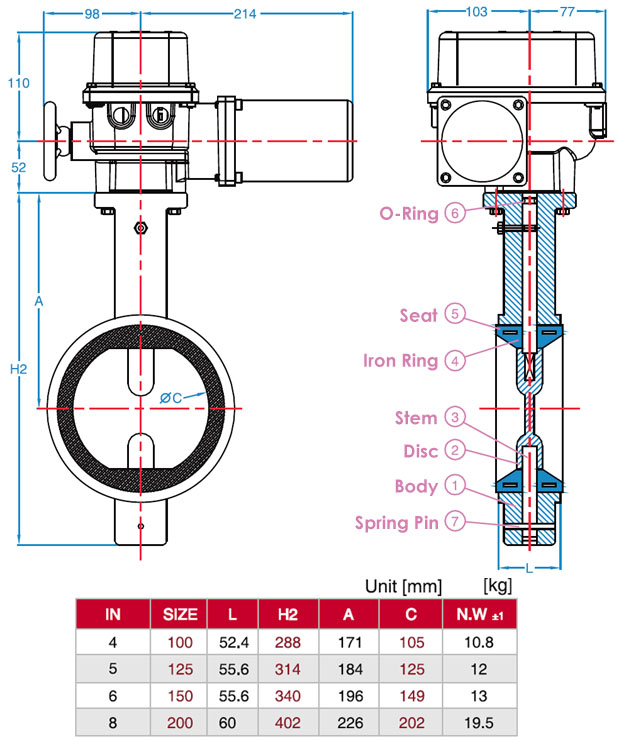

▲ Electric Butterfly Valve Structure Diagram

Features of electric butterfly valves for water treatment

◆ Equipped with Wafer type butterfly valves in FC20, CF8 or CF8M materials for option.

◆ The butterfly valve available size from 2'' to 14''

◆ The turning speed of 90° rotation in 7 ~ 80 seconds.

◆ Suitable for water treatment system, HVAC, rain water utilization applications.
